5V 1 Channel Relay Module For PIC AVR DSP ARM power supply module

Product Categories

Shenzhen Creatall Electronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : 1 Channel Relay Module

Place of Origin : Guangdong, China

Supply Ability : 1000 Piece/Pieces per Day

Price : negotiable

Type : dc dc converter

Brand : creatall

Port : shenzhen port,guangzhou port

MOQ : 10pcs

Delivery Time : 5-8 work days

Name : Control Relay Module

Theory : Voltage Relay

Usage : PROTECTIVE

Size : Miniature

Control Mode : Manual/Automatic

Working Temperature : -20℃~+60℃

Contact Now

The relay coil drive voltage is 5V, and the input control level can also be within 5V.
Output drive capacity: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28V DC-10A.
Easy to use, each output group has a simple 3-wire structure, and 6 output terminals are reserved.

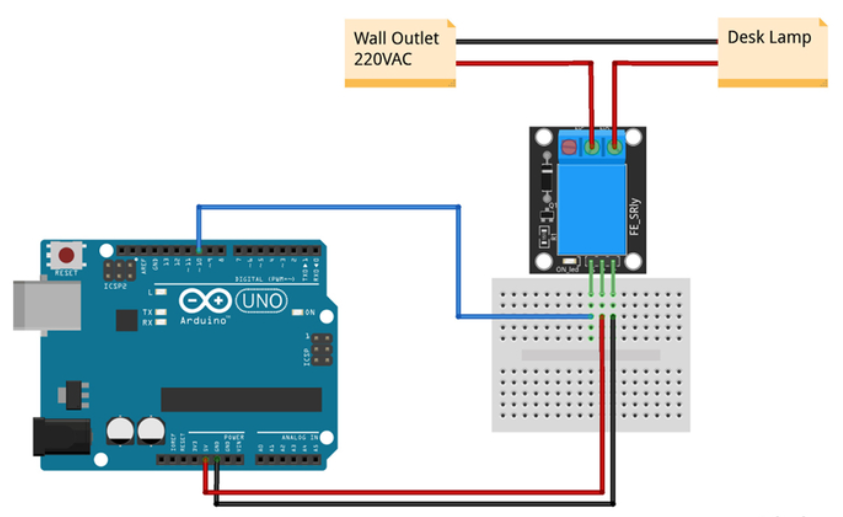

The input is directly connected to the MCU IO port or digital circuit, and the input high-level relay The device is closed, and the input low level relay is released.
Working voltage 5V, pull-in current about 70mA per circuit, with relay status indication light.
Full chip components. Reasonable drive circuit design, using 8050 transistor to drive the relay Electrical action.
There are fixed screw holes for easy installation,
module size: 25.8*33.4*16.7mm. Test Instruction The input and output of the module are electrically insulated.
After the correct voltage is supplied, you only need to Connecting a high level (such as a short circuit with VCC) to the input pin can make the relay pull in,If not connected or connected to low level (such as short-circuit with GND), the relay will not operate.

5V 1 Channel Relay Module For PIC AVR DSP ARM power supply module
