MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

Name: MT3608 2A DCDC increasing voltage Board Wide Voltage Input 224V Lto 591228V adjustable power module
Brand: Creatall
Price: 1 USD

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module Manufactures

Place of Origin : Guangdong, China

Brand Name : Creatall

Model Number : MT3608

Application : integraded ciucuit

Type : dc-dc, Voltage Regulator

Features : step-up

Mounting Type : direct mounting

Description : mt3608 dc-dc power supply module

Product Name : amplifier power module

Warranty : 30~90 Days

Color : Black

Model : MT3608

Voltage : Input 2/24V Lto 5/9/12/28V

Input Type : DC

Packaging Details : static bag,poly bag

Port : shenzhen port

Supply Ability : 10000 Piece/Pieces per Day

MOQ : 10pcs

Price : negotiable

Delivery Time : 5-8 work days

Contact Now

Specification

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable amplifier power module

1. Module characteristics (booster module) :
1) maximum output current :2A.
2) input voltage :2 v ~ 24 v.
3) maximum output voltage :> 5v-28 v.
4).Efficiency: > 93%
2. Mechanical properties:
1).Product size :37.2 mm * 17.2 mm * 14 mm.

3. Use method
After the module,+ and -2 ~ 15v, adjust the potentiometer to adjust the output voltage, and the output voltage is higher than the input voltage.

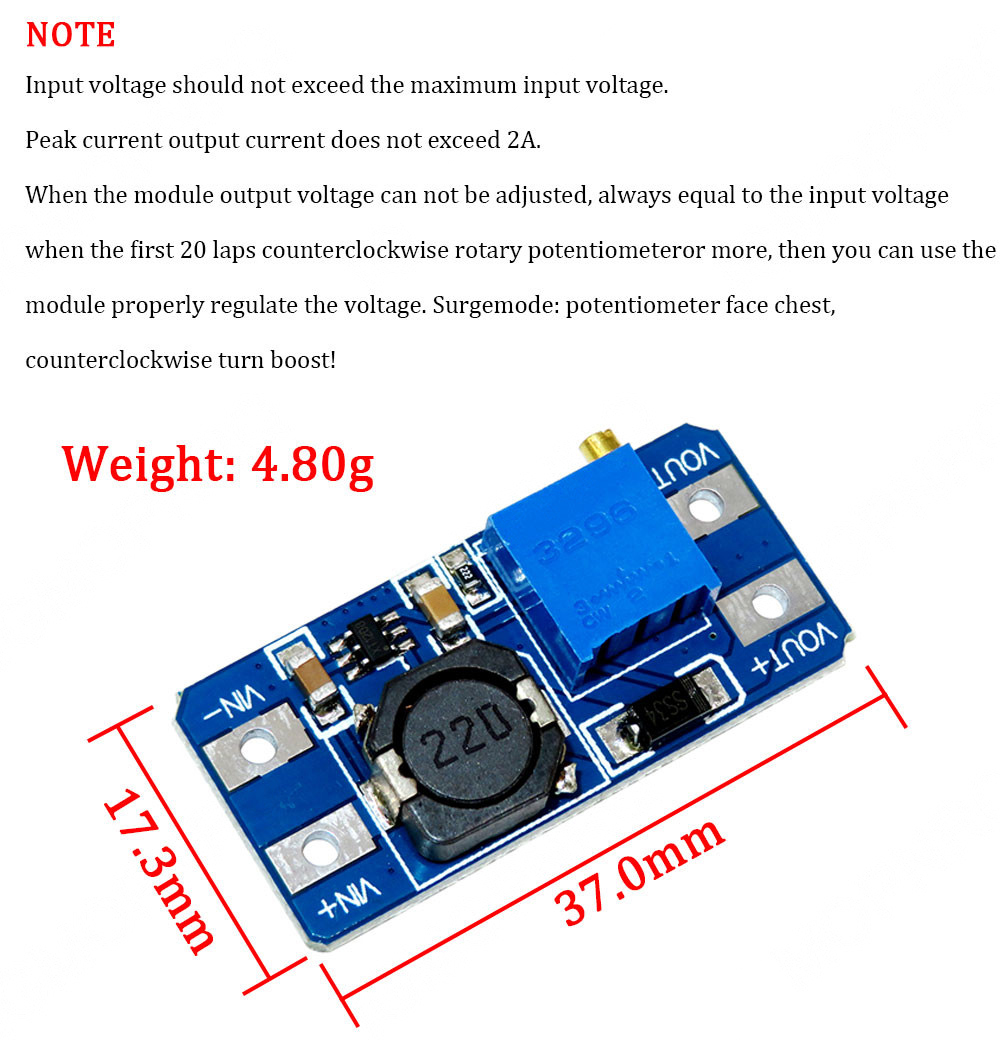

4. Precautions
1).The input voltage shall not exceed the maximum input voltage.
2).The peak current output current is no more than 2A.

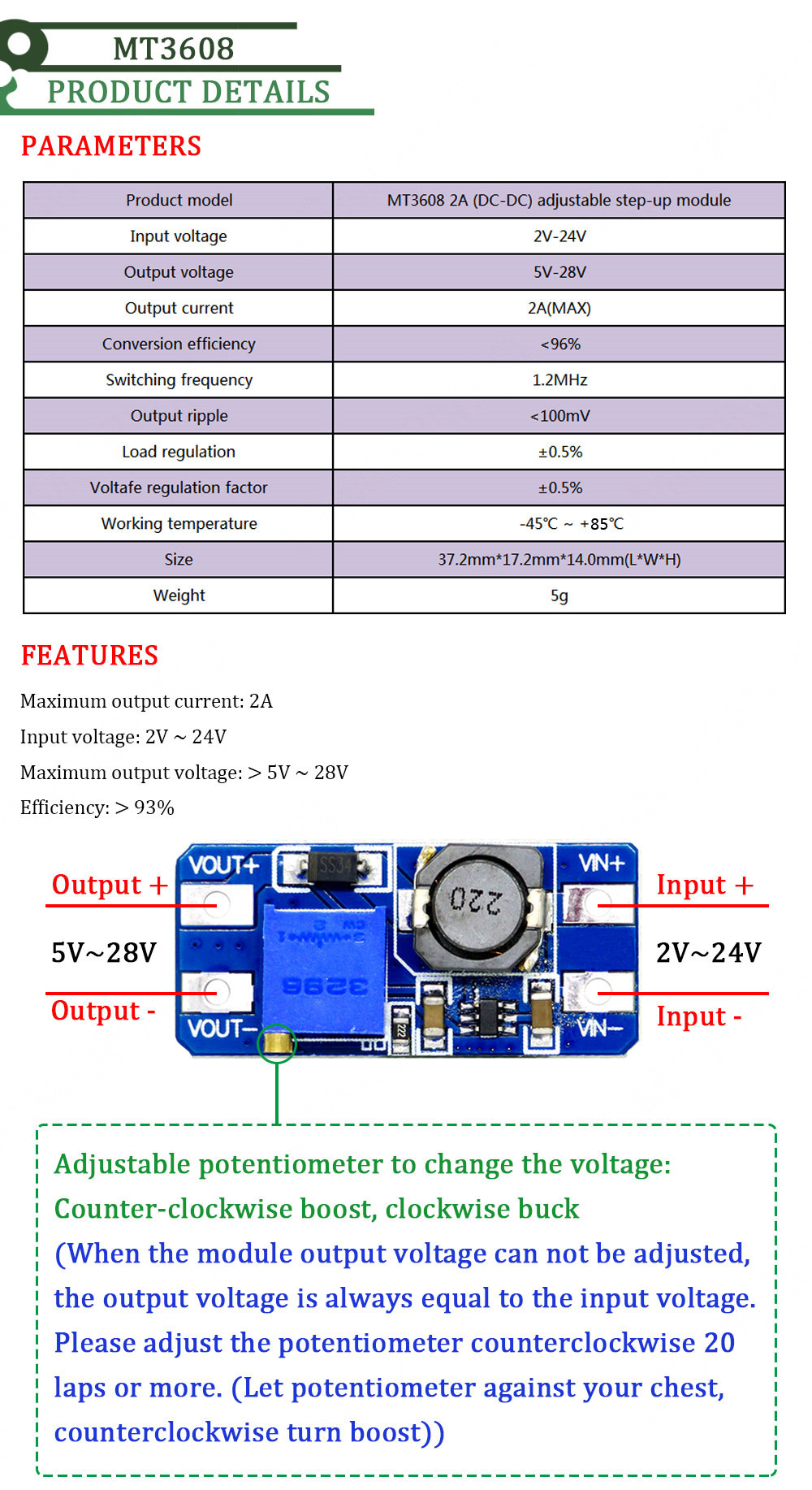

Product model	MT3608 2A (DC-DC) adjustable step-up module	Conversion efficiency	<96%
Input voltage	2V-24V	Switching frequency	1.2MHz
Output voltage	5V-28V	output ripple	<100mv
Output current	2A(MAX)	Load regulation	±0.5%
Voltafe regulation factor	+0.5%	Working temperature	-45℃~ +85℃
Size	37.2mm17.2mm14.0mm(LWH)	Weight	5g

Products Description

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

Recommend Products

FAQ

Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
