XL7015 DC-DC Converter Module 5V-80V Wide Voltage Input 7005A LM2596 Power Board Mount DC Converter Board Mount Converter

Name: XL7015 DCDC Converter Module 5V80V Wide Voltage Input 7005A LM2596 Power Board Mount DC Converter Board Mount Converter
Brand: Creatall
Price: 5.12 USD

XL7015 DC-DC Converter Module 5V-80V Wide Voltage Input 7005A LM2596 Power Board Mount DC Converter Board Mount Converter Manufactures

Place of Origin : Guangdong, China

Brand Name : Creatall

Model Number : XL7015

Mounting Type : standard

Description : DC-DC Step Down module

MOQ : 50 pieces

Price : CN¥5.12-5.85/pieces

Contact Now

XL7015 DC-DC Converter Module 5V-80V Wide Voltage Input 7005A LM2596 Power Board Mount DC Converter Board Mount Converter

Products Description

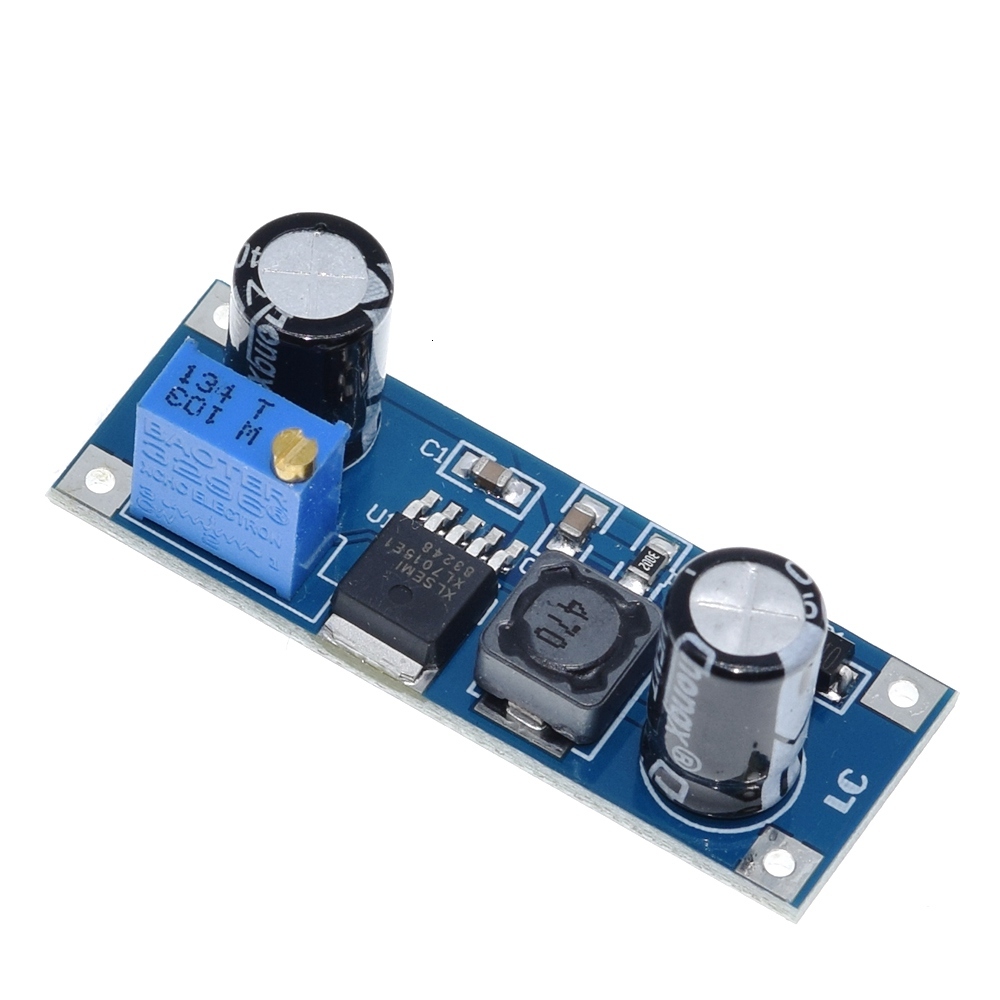

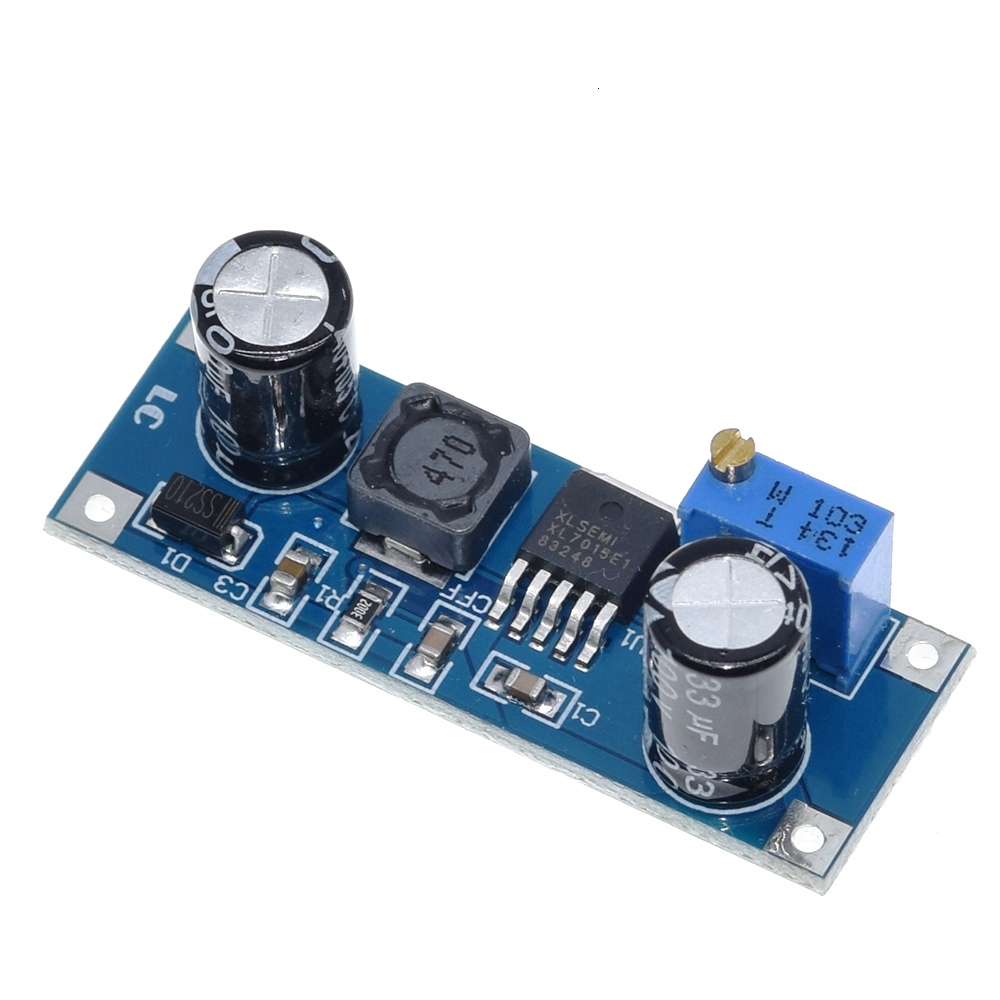

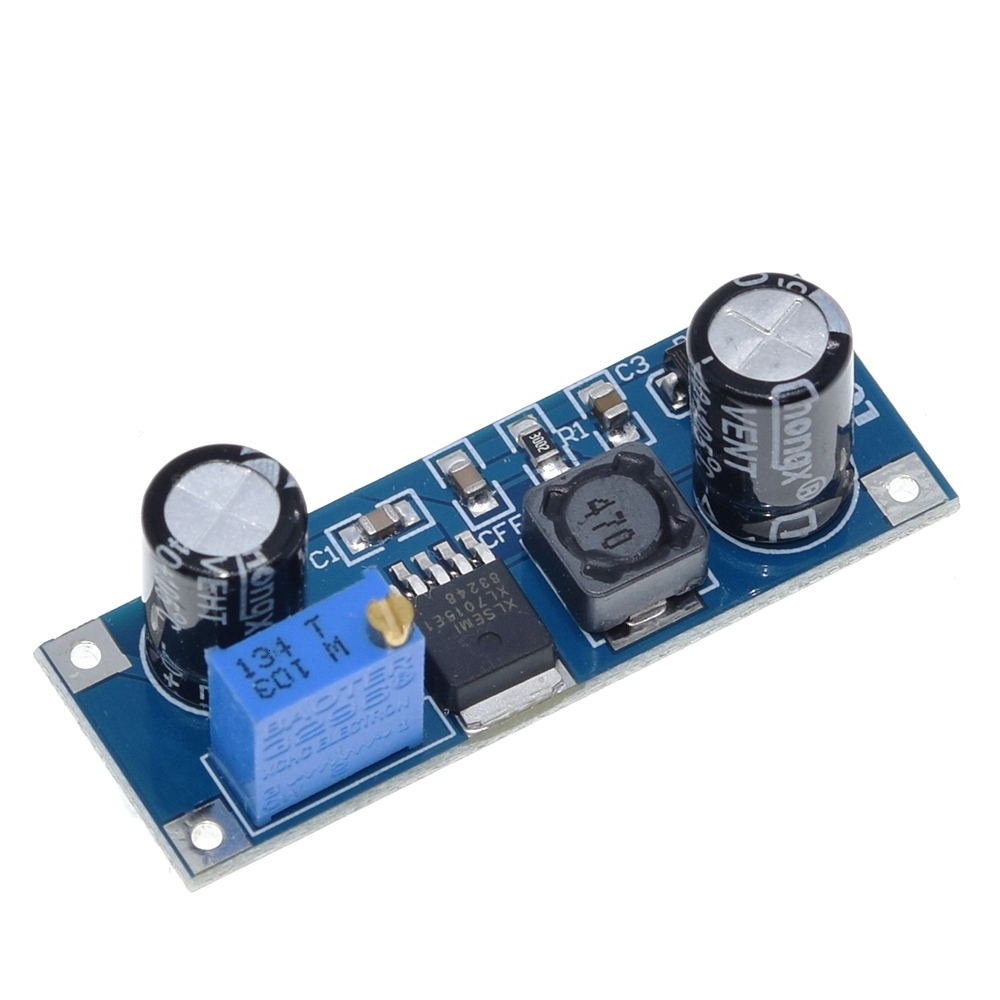

XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.

1. 5V to 80V wide input voltage range;
2. The output voltage is adjustable from 5V to 20V;
3. The minimum pressure drop 1V;
4. The maximum switching current of 0.8A;
5. Recommended output power less than 7W;
6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;
7. The excellent linearity and load regulation;

Hardware introduction and notes
Board size: 16mm * 44mm;

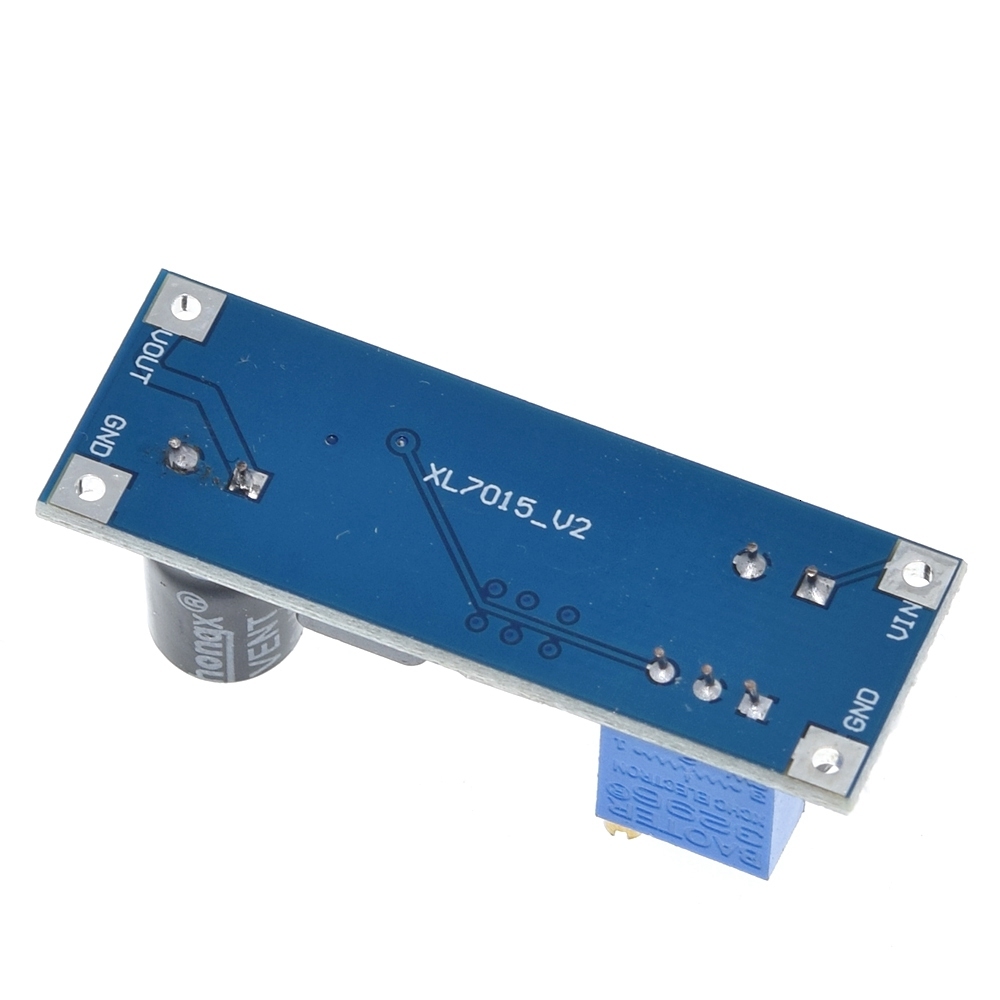

Wiring
1. VIN: input voltage (5V-80V);
2. GND: the input voltage ground terminal;
3. VOUT: Output voltage terminal (5V-20V);
4. GND: output voltage of the ground terminal;
